Tank Liner

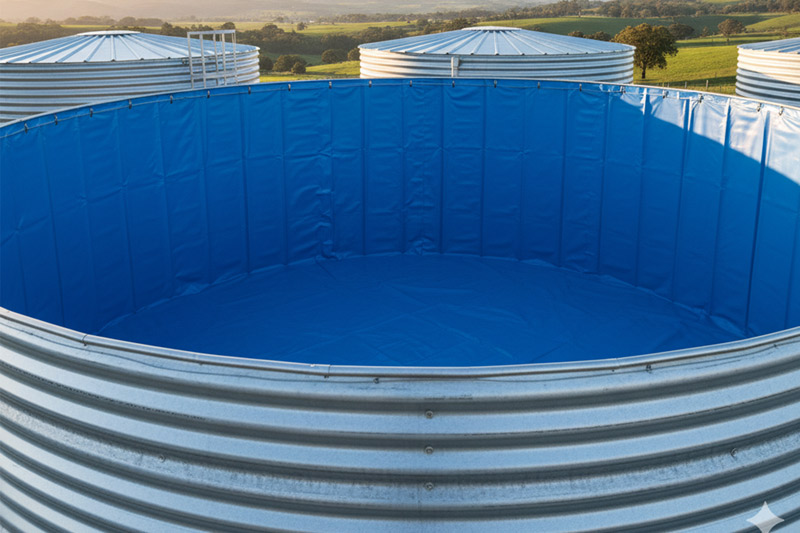

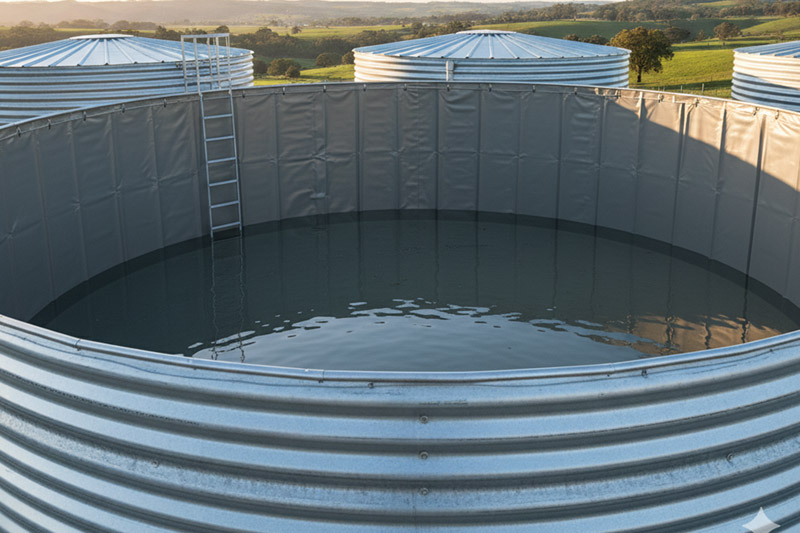

The Liners are made by PVC, reinforced with compressed multilayer nylon mesh with options like Butyl Rubber or EPDM. Liners are prefabricated as one piece bag to fit inside the water tank. These are non-sticky and chemical stabilized. With water inflow, it takes the shape of the tank. These liners are made of food grade, anti-algae and UV stabilized. These are made according to anti-cracking technology and tested upto 600,000 folds before cracking.

Tank Technical Details of Liner

• Hardness (Test Method BS903A26) : 65 + 5 IRH
• Tear Strength (Test Method BS903A3C) : Min. 30kn/m
• Modulusat 300% Elongation (Test Method BS903A2 : Min. 5.0 Mpa)
• Adhesion (Test Method DIN 53337) : 12 Da/N
• Tensile Strength (Test Method BS903A2) : Min 9.0 Mpa
• Elongation Break : Min. 400%
• Finishing : Glossy lacquered (Both Face)

Application

• Drinking Water Storage
• Industrial Water Storage
• Raw Water Storage
• Municipal Water Storage
• Chlorination water storage
• Sludge holding storage
• DM Water Storage
• ETP/STP Storage
• Rain Water Storage
• Fish cultivation water storage
• Pond Application
