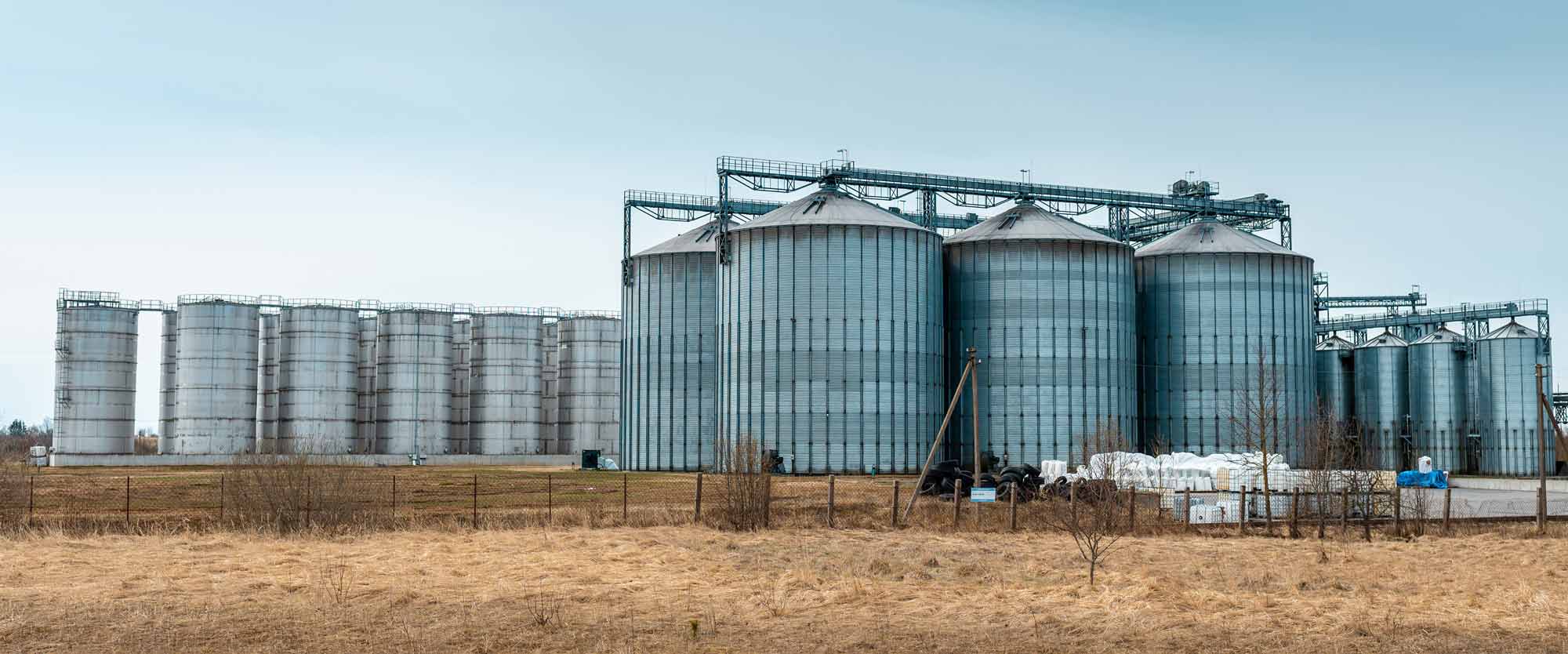

Grain Storage Silo

Demand for bulk storage and handling equipment is increasing worldwide. Volumes and competitive pricing in grain handling charges require efficient solutions.Silos are used for storage of Grains like Paddy, Maize, Rice, Broken rice etc. The old way of storage in godown becomes obsolete as there was a lots of problems like grain spoilage, pests, and Mold.Lumix Engineering Private Limited manufactures the right quality of product to produce the efficiency savings required to justify the investment. Engineering expertise and commitment to the highest standards are hallmarks of the modern focused company. We combine eco-friendly, cutting-edge technology with simplicity, efficiency, and cost-effectiveness, to give to our clients the new-age solution to complete storage facilities and processing equipment. We manufacture the Grain storage silos in Both Zincalume& GI material. Both the material is used by us are from reputed brands TATA BLUE SCOPE & JSW. Our silos have dynamic designing while considering the Seismic zone, Wind load, Material Density and many other factors.

Grain Storage Silo Features

Preserve Grain Quality : Our silo protects your grain from moisture, pests, and mold. Ensuring optimal quality and market value. Maximize Storage Space : Our Silo offer high storage capacity, reducing the need for multiple storage units and saving valuable space. Efficient Loading/Unloading : Our silos feature easy and efficient loading/unloading systems, reducing labour costs (using elevators conveyers and grain handling systems) and minimizing grain damage.
Durability : Our zinc alum/GI silos are corrosion-resistant and built to last, withstanding harsh weather conditions and ensuring long-term reliability.
Cost Savings : By reducing grain spoilage and increasing efficiency, our silos help you save money and boost profitability.

We Supply Two Types of Silos

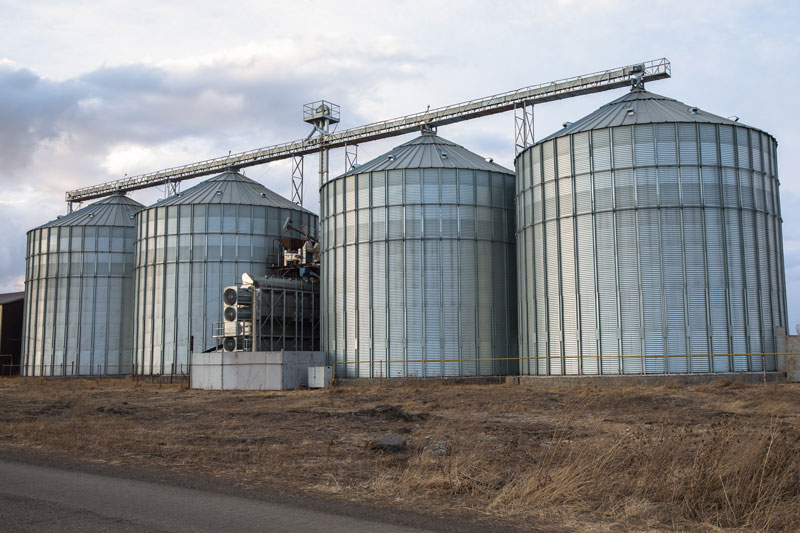

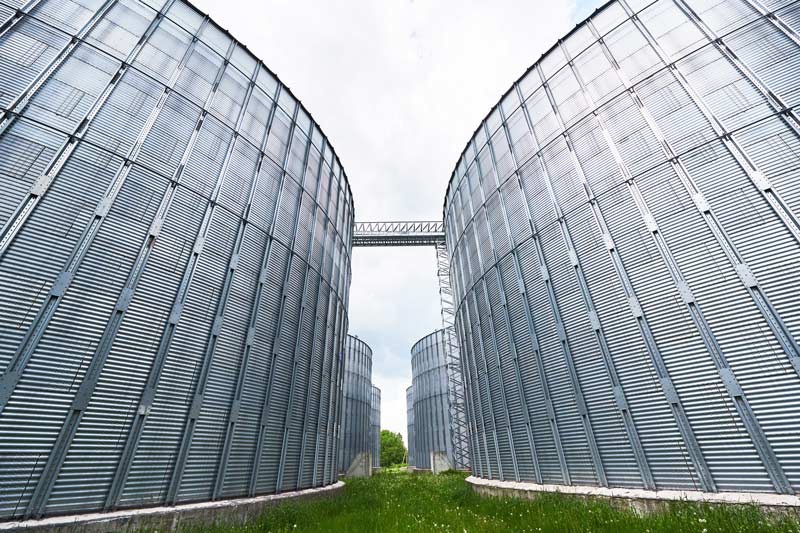

Flat Bottom Silo

Lumix Engineering Private Limited manufactures a wide range of grain storage flat bottom silos from 300 MT up to 15,000 MT in a single bin according to the latest available globally approved standards. The design of BEN & GAWS dry bulk storage silos is made according to the loads on silo bins derived from American standard ANSI- ASAE EP 433:88 REV 2006 or German standard DIN 1055 1987 , wind load calculation (standard for 180 kmph and maximum up to 250 kmph) follows German standard DIN 1055-4:2005-03,snow& ice load calculation follows German standard DIN 1055-5: 2005-07. All the silos are designed according to respective seismic zone according to uniform building code and applicable snow load depending on installation site. It uses UNI EN 10346: 2009 S350 GD+Z grade ultra-high tensile and high yield steel with fine molecular structure and controlled internal purity. It combines outstanding mechanical properties like fatigue resistance, toughness and formability along with abrasion resistance.

General Parameters:
Capacity :Upto 15,000 MT
Diamenter : From 3 Meters to 30 Meters
Cylinder Height :Upto 28 Meters

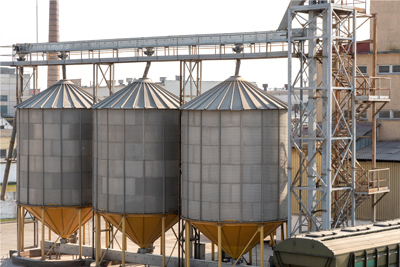

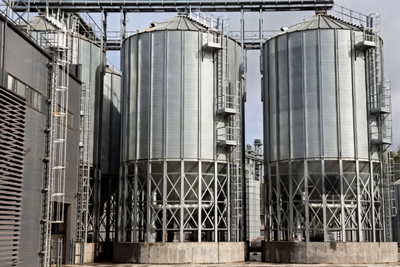

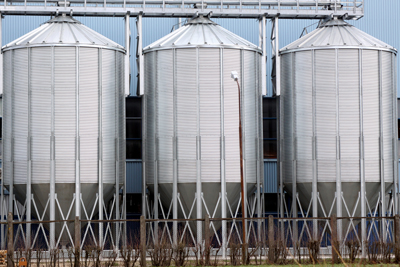

Hopper Bottom Silo

Hopper bottom silos are conical shape steel structure to provide storage, The design of hopper bottom silos ensures that the stored grain is kept in good condition, as it is protected from moisture, pests, and Mold. The conical shape of the bottom of the silo allows for the grain to be easily unloaded, without the need for manual intervention. We recommend to prefer the Hopper bottom silo for capacity range 10 MT to 500 MT, While Hopper bottom silos can be manufactured up 1000 MT. This is totally made up with Zincalume/GI sheets, tightened with high strength Nut Bolts to provide excellent storage. Hopper Bottom Silos can provide temporary we grain storage as part of a grain drying plant and other buffer bin applications in plant. Storage of free-flowing granulated products, wood pellets and feed pellets in relevant industrial plants.

General Prameters -
Capacity : Upto 1000MT
Diamenter : Upto 10 Meters
OverallHeight : 30 Meters
